Organizations, Users, and Access Management

Before using Arraylake, you'll need to configure your organization, users, and access management. For a conceptual overview of these concepts, see Roles and Permissions.

Organizations

An ArrayLake org represents an collection of users that maintains multiple repos. A company or institution will typically have a single Arraylake org, and an Arraylake User can belong to one or more organizations.

The org is the owner of all repos. When using the Arraylake API, the org identifier prefixes a repository name to uniquely identify a repository. For example my-company/sentinel-repo represents the sentinel-repo belonging to my-company.

note

Arraylake orgs are created by the Earthmover team once your account has been provisioned.

For more depth, have a look at the Arraylake data model.

Principals

Identities in the Earthmover Platform are called principals. Principals can be one of two types:

• Users - Actual human users. Each user is associated with an email address.
• API Keys - API keys are intended for non-human "service accounts", suitable for use in automated data processing jobs, dashboards, or other machine-to-machine connections.

Managing Principal Permissions

Principals can have Organization-Scoped and Repo-Scoped roles within the platform. For an enumeration of each role's permissions, see Organization-Scoped User Roles and Repo-Scoped User Roles.

Creating and Managing Users

When your Arraylake org is created, the Earthmover team will create at least one admin user. This admin user can create more users and edit their permissions.

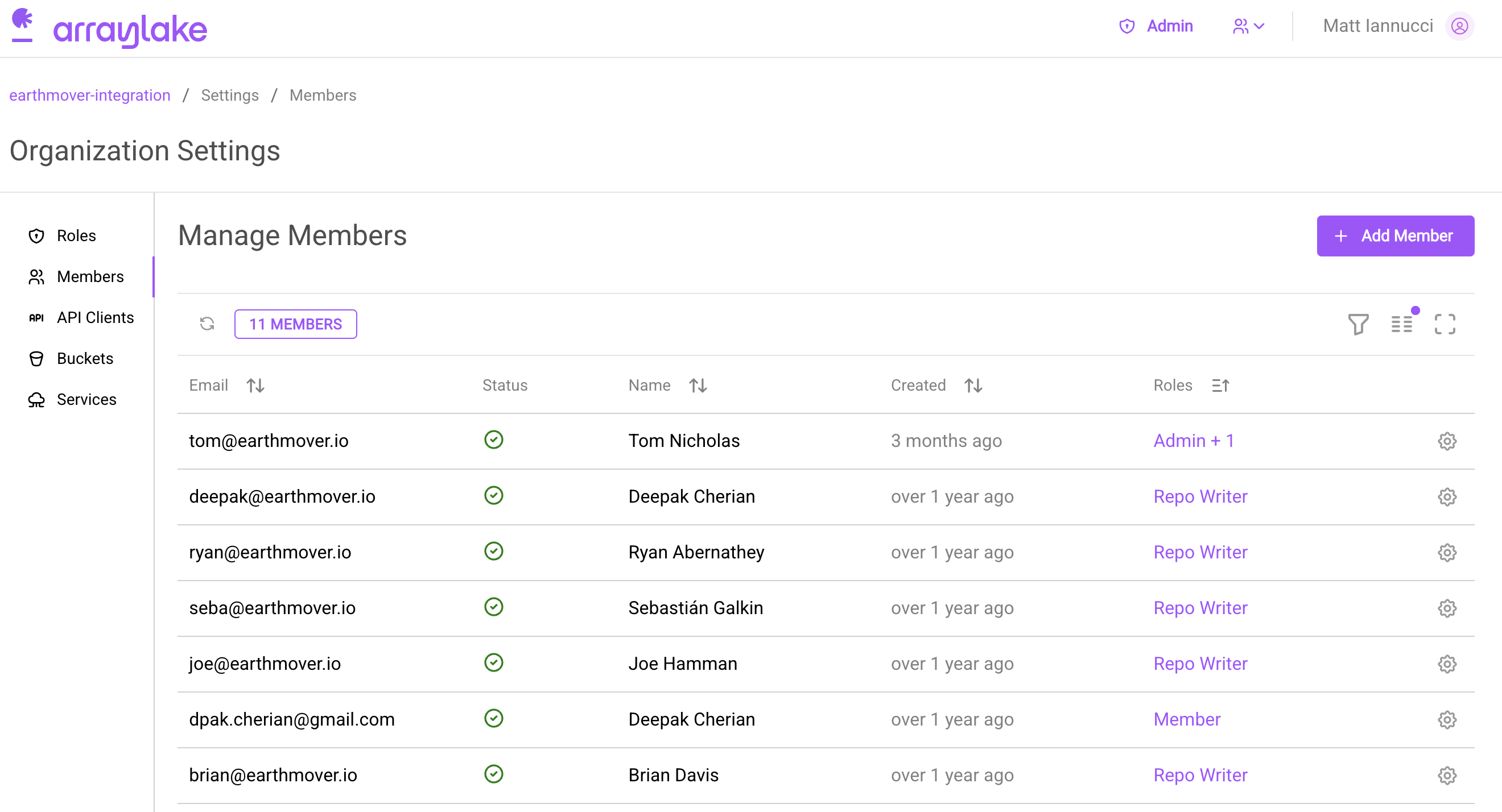

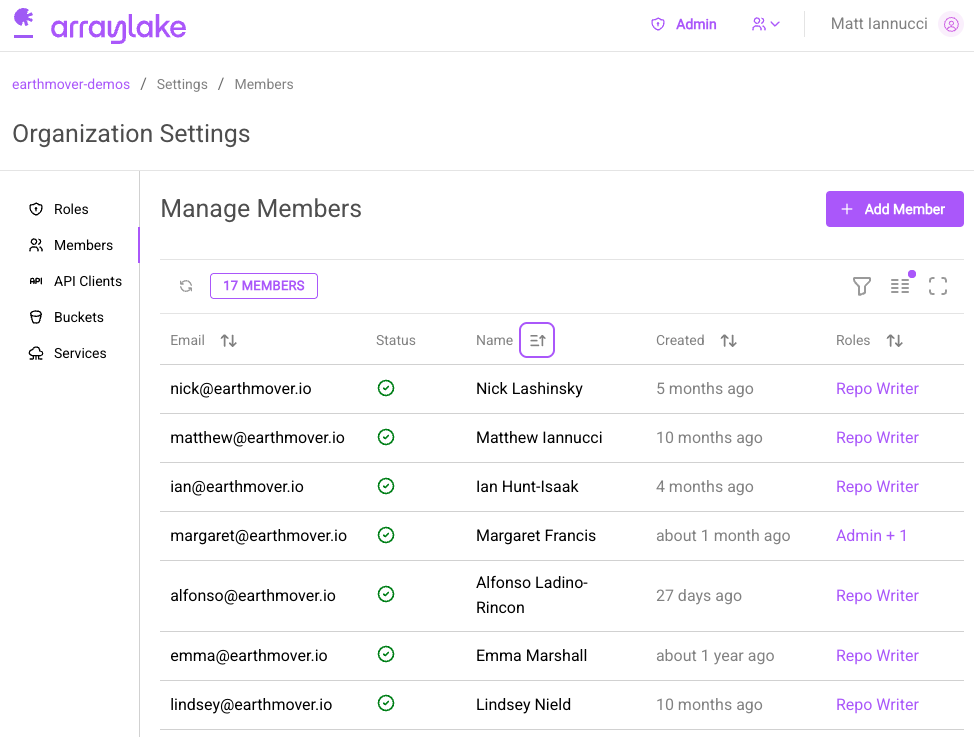

Users are managed via the Organization Settings dashboard:

To add a new user, click the big purple "Add Member" button. Then enter the user email:

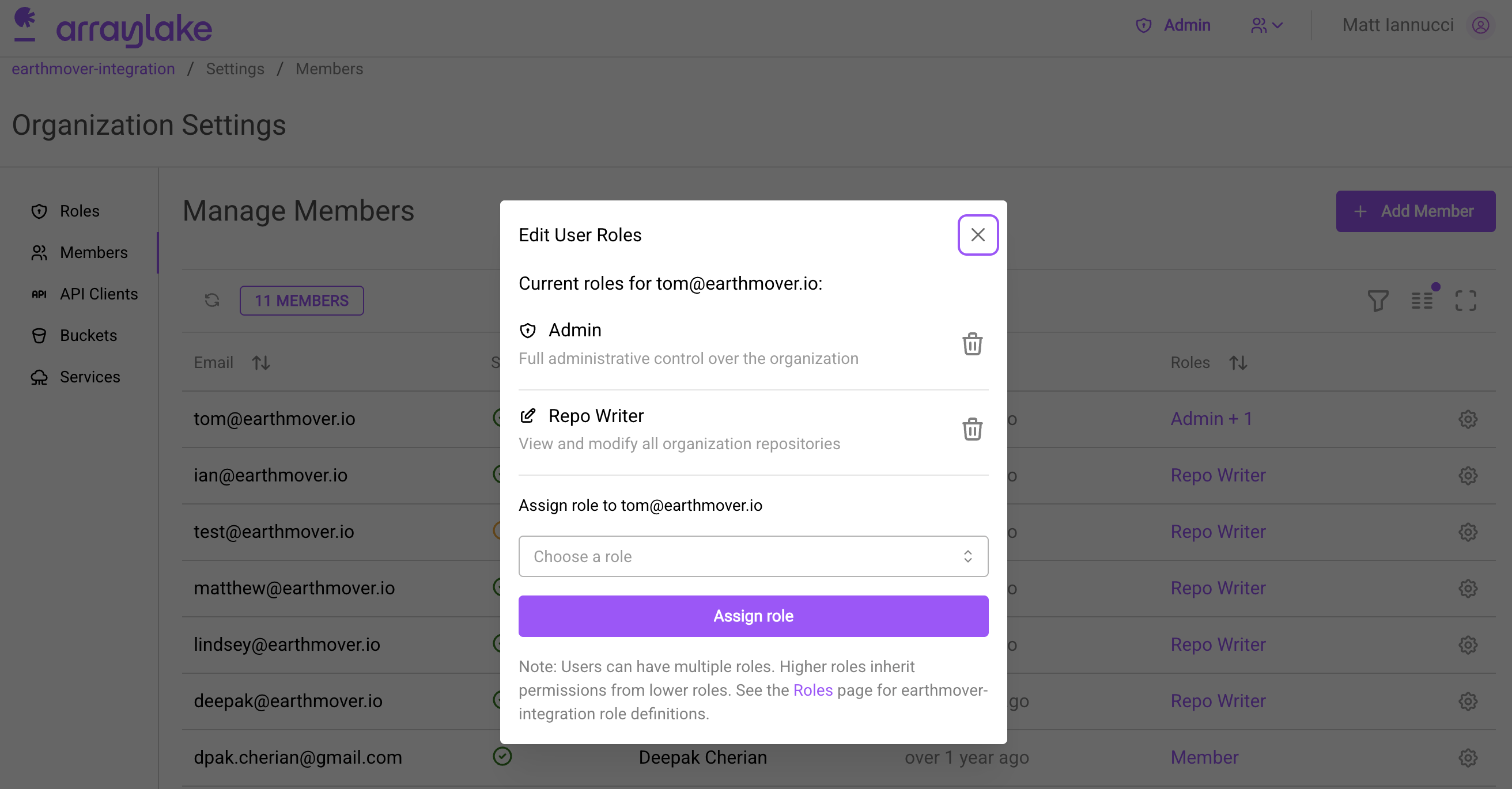

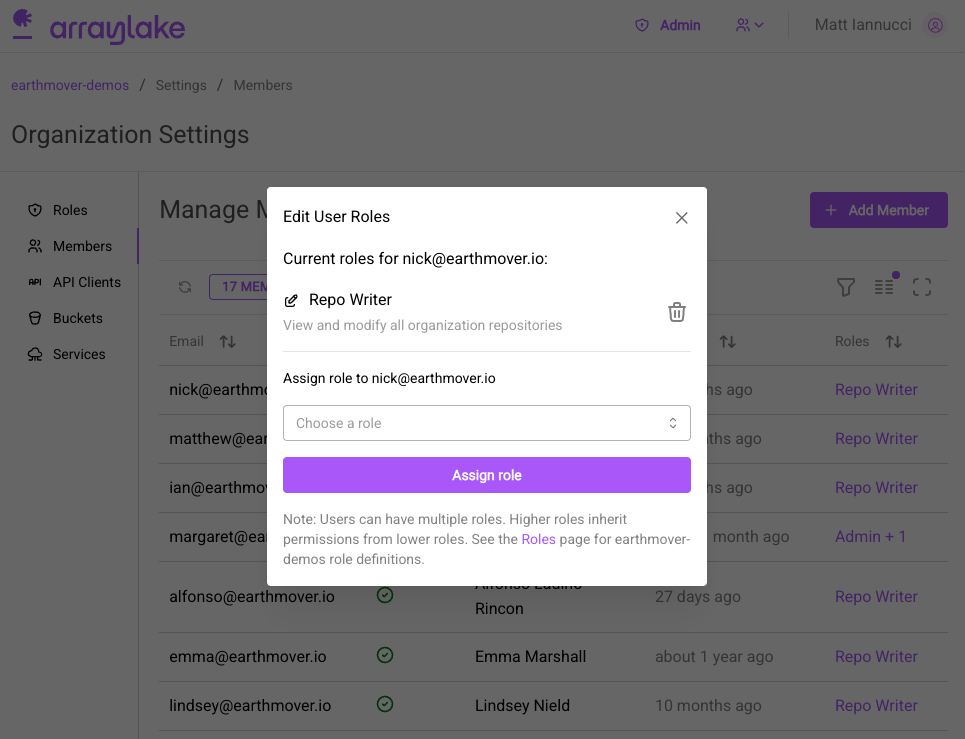

To change a user's roles, click on the users current role in the table, or the settings gear icon to the right of the table.

note

Repo-level roles are also available to grant fine-grained access to repos. For more information, see Repo-Scoped User Roles.

Creating and Managing API Keys

Arraylake allows you to create API keys that have access to all repositories in an organization. API Keys can be given explicit permissions to perform actions within an organization or repo. For an enumeration of each permission's capabilities, see Organization-Scoped API Key Permissions and Repo-Scoped API Key Permissions.

API keys can be used in place of user accounts to provide access to Arraylake data. API keys can be thought of as "service accounts," suitable for use in automated data processing jobs, dashboards, or other machine-to-machine connections.

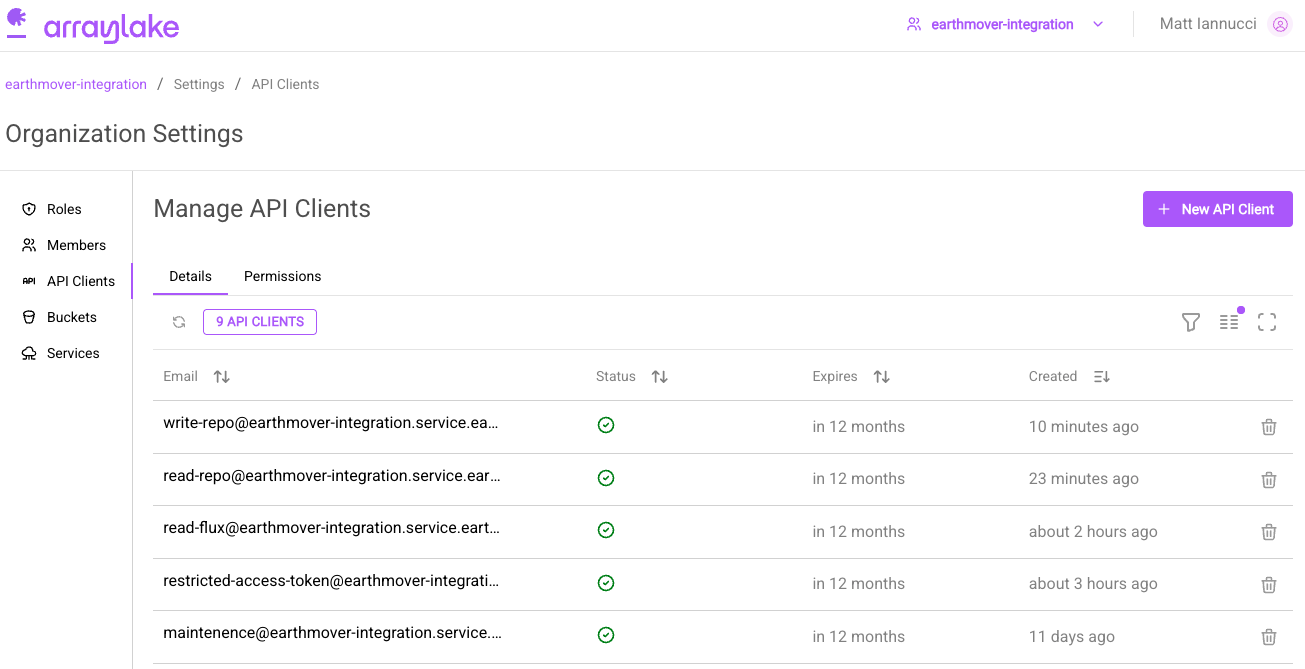

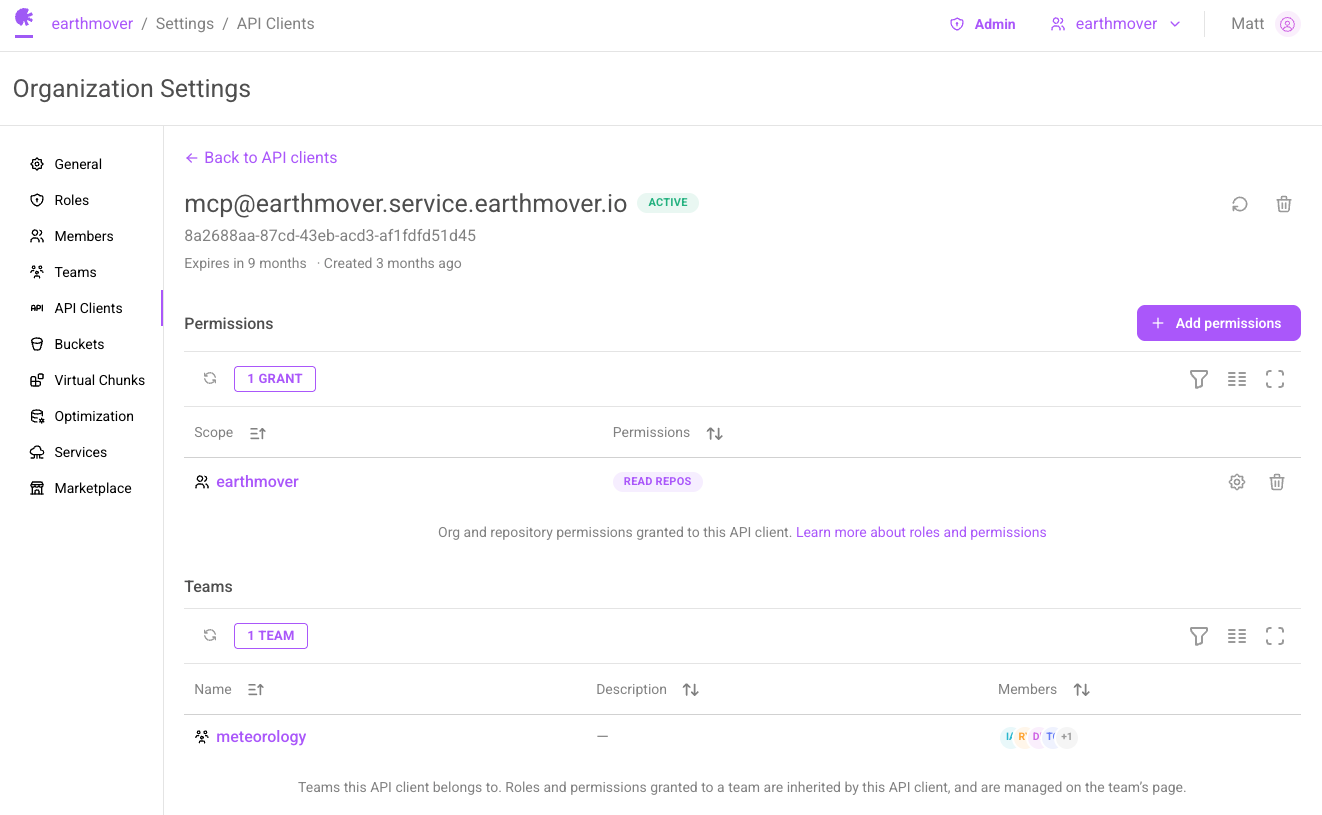

To manage API Keys, navigate to the "API Clients" tab:

Here you can view and delete existing API keys.

To create a new API key, click on the big purple "New API Client" button.

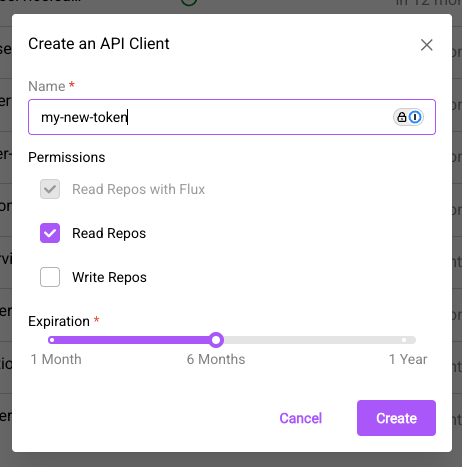

Enter a name for the API key, then select the appropriate permissions (read/write), and the key's lifetime (Once an API key expires it can no longer be used.)

Once the key has been created, you will be shown a secret token.

About API Keys

• API Keys are associated with shared Service Accounts. They are intended to be used for machine-to-machine authentication on behalf of these accounts, and should not be used for individual user access to services.
• API Keys use an identifier of the form: <name>@<org>.service.earthmover.io. The <name> component of this identifier is defined by the requester. (Note that this is not actually a valid email address.)
• Secret tokens expire after 1 year by default. This is configurable as needed by the requester.
• Secret tokens are a single string, prefixed with the ema_ identifier.
  • Example Token: ema_123456789123456789_123456789123456789123456789.
• Tokens should be considered secret, and should not be shared publicly. Owners should take appropriate precautions when distributing in deployed environments. For example: consider storing the token in a service like AWS SSM Paramater store to enable deployed services or jobs to access them.

To delete an API key, click the garbage-can symbol.

note

Repo-level permissions are also available to grant fine-grained access to repos. For more information, see Repo-Scoped API Key Permissions.

Rotating API Keys

Org admins can rotate an API key's secret without recreating the client. This issues a new token, lets the previous token continue to authenticate for a configurable grace period, and optionally extends the key's expiration. Use rotation when:

• The current token may have been exposed or shared too broadly.
• You want to periodically refresh long-lived service-account tokens as a hygiene practice.
• The key is approaching its expiration and you want to extend it without disrupting consumers.

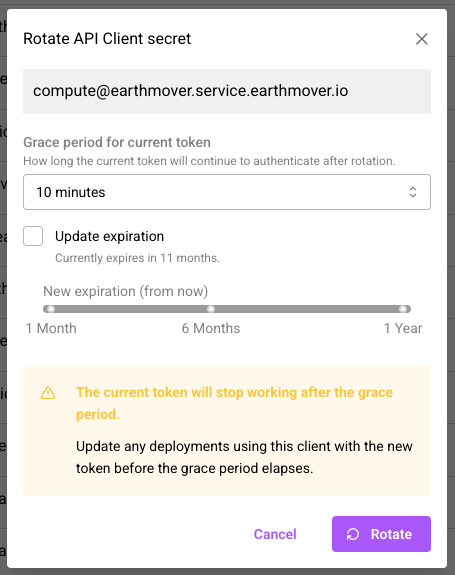

To rotate a token, click the rotate icon next to the API key in the "API Clients" tab.

In the rotation dialog you can configure:

• Grace period for current token - How long the previous token will continue to authenticate after rotation. Options range from immediate revocation up to 7 days. During the grace period, both the old and the new token are accepted, giving you time to roll the new value out to your deployments.
• Extend expiration - Optionally push the key's expiration out by 1 to 12 months from the time of rotation. If left unchecked, the existing expiration is preserved.

Once submitted, you'll be shown the new secret token. As with creation, this is the only time the full token is visible - copy it immediately and store it securely. Update any deployments using this client with the new token before the grace period elapses; once it does, the previous token will stop authenticating.

note

Rotation requires the same manage_org_users permission used to create and delete API keys. The grace period is capped at 7 days. The new expiration cannot exceed the maximum service-account duration enforced by the service.

Repo-Scoped Roles and Permissions

Repo-level roles and permissions are available to grant explicit access to repos.

note

Repos can only add users and API keys from the organization they belong to.

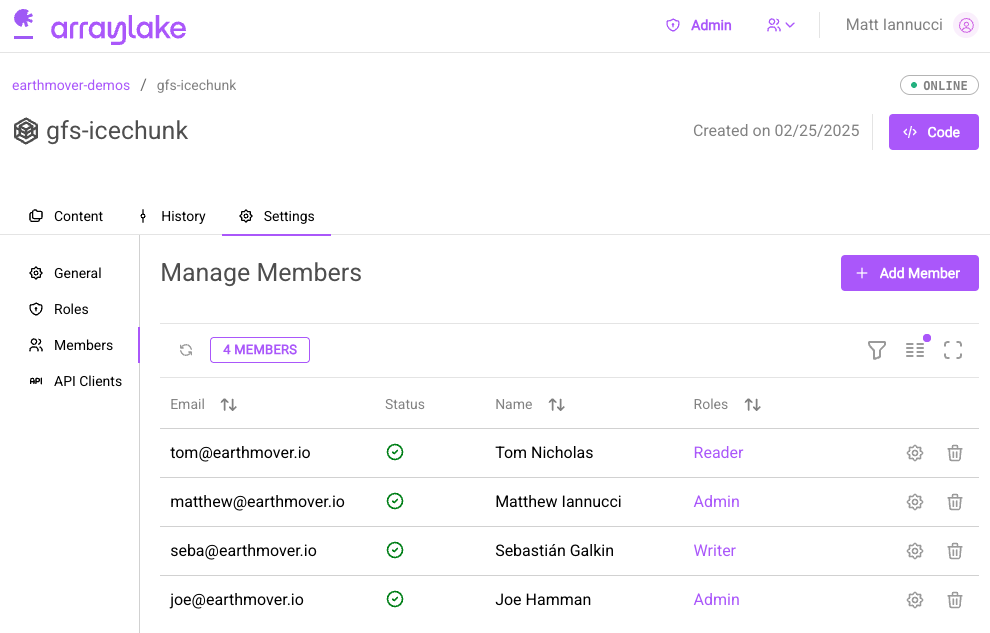

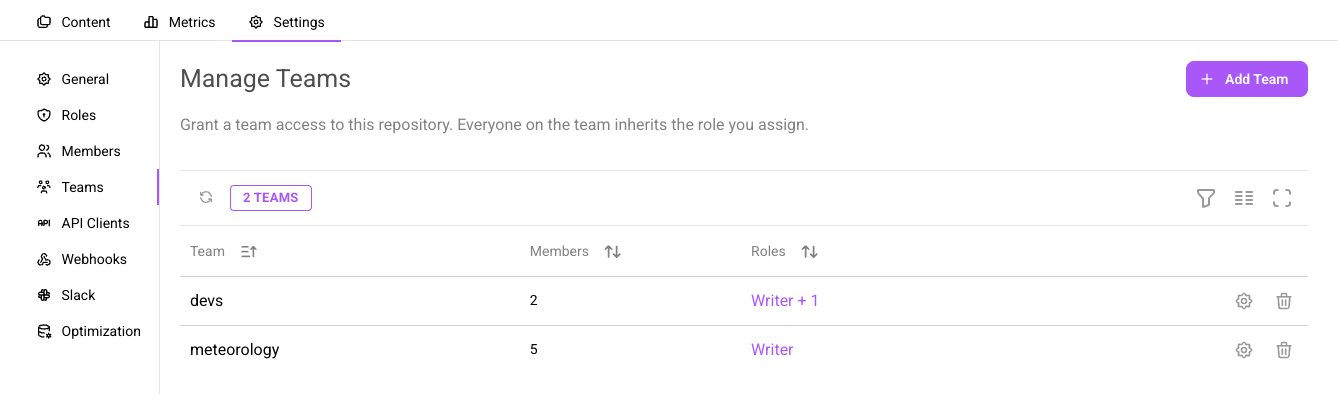

Once users and API keys have been added to an organization, they can be granted explicit repo level roles and permissions. From a repository's settings page, you can grant roles to users using the "Members" tab. From here you can modify a user's roles and add organization users to the repo to grant them explicit repo-scoped roles.

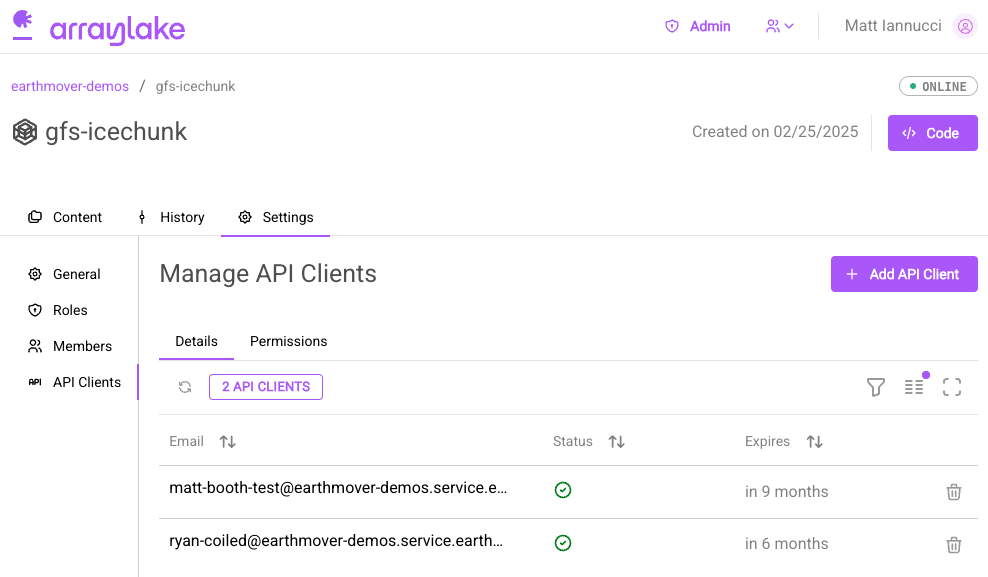

The "API Clients" tab can be used to manage API keys for a repo.

Client Authentication

Interacting with data in Arraylake from Python requires authentication by the client.

Arraylake supports two methods of authenticating requests to the service:

• User identities: A User authenticates directly
• API Keys: An API token associated with a shared service account is used

Authenticating as a User

To authenticate as a user, use the Arraylake CLI or Python API.

Running the following command will initiate the login flow by directing you to a login page associated with your organization:

CLI

arraylake auth login

# Or, if running from a remote environment
arraylake auth login --no-browser

Python

from arraylake import Client

client = Client()
client.login()

This flow will yield a code that can be provided to the command line prompt and ultimately authenticate your access to the service.

Subsequently you can use arraylake auth logout to logout, or arraylake auth refresh to refresh your authenticated status.

Authenticating with an API Key

At this time, API Key authentication is available via the Python API only. To authenticate with an API Key, pass the appropriate API token as a parameter to the Client. We recommend storing the token as an environment variable rather than hard coding the token in code. For example, if the environment variable MY_ARRAYLAKE_API_TOKEN is set, you can access it as follows:

Python

import os
from arraylake import Client

api_token = os.environ.get('MY_ARRAYLAKE_API_TOKEN')
client = Client(token=api_token)
client.list_repos('my-org')

tip

If present, the ARRAYLAKE_TOKEN environment variable will automatically be detected and used to populate the client token. This is the easiest way to configure access to Arraylake from automated scripts, cron jobs, and CI environments.

Enterprise Authentication Support

Arraylake supports social login using Google, GitHub, and Microsoft accounts. For most organizations, no additional configuration is needed. Simply add users to your organization using their email address and instruct them to login with the appropriate authentication provider.

GitHub

If you plan to use GitHub to allow your users to login via Arraylake, remember that you'll be adding users via the email associated with their account. To find the email address associated with a GitHub user account, you can use the GitHub API. Below is an example showing how this can be done using GitHub's CLI:

gh api \
  -H "Accept: application/vnd.github+json" \
  -H "X-GitHub-Api-Version: 2022-11-28" \
  /users/jhamman

Microsoft Active Directory

If your organization uses enterprise Microsoft Active Directory to manage your users, you may need to approve Earthmover's OIDC application before your users can login. This can be done by following this link.

Public Data

There are three methods by which you can make arraylake data publicly available.

Flux

You can expose Earthmover's Flux Service publicly by not requiring authentication

API Keys

As discussed above you can generate API keys with appropriately scoped access and distribute these.

Making a Repository public

In the settings app.earthmover.io/{org}/{repo}/settings/general you can update the visibility of a repository to public which will allow anyone with an Arraylake account to access the raw data.
